66740-2
Manufacturer:
TE Connectivity
Mfr.Part #:
66740-2
Datasheet:
Description:

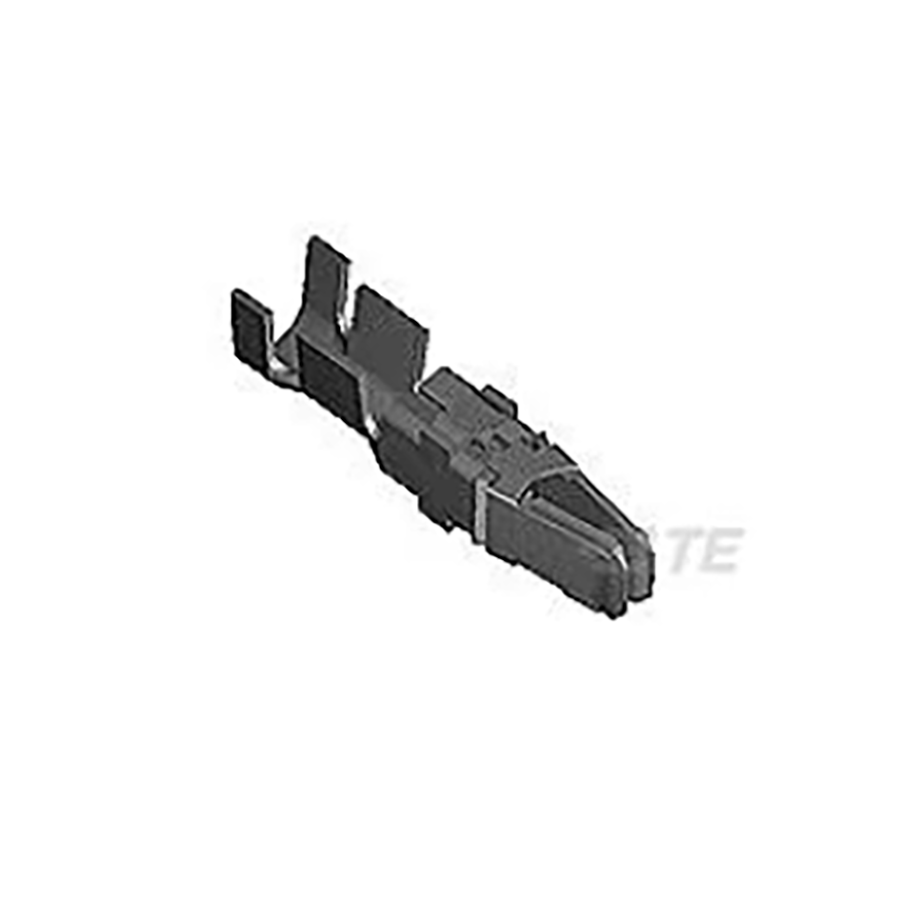

IC and Component Sockets Cable Socket
| Parameter | Value |
|---|---|
| Length | 32.18 mm |
| Termination | Crimp |
| Max Operating Temperature | |
| Min Operating Temperature | |
| Height | 6.09 mm |
| Material | Copper |
| Packaging | Bulk |
| Depth | 5.58 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Copper |
| Pitch | |
| Current Rating | 35 A |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Socket (Female) |
| Shielding | Unshielded |
| ELV | Compliant |
| Connector Type | Socket |
| Wire/Cable Gauge | 16 AWG to 12 AWG |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Wire/Cable Type | Discrete |
| Circuit Application | Power |
| Contact Style | Socket |
| Wire Gauge (Max) | 16 AWG |
| Wire Gauge (Min) | 12 AWG |
| Plating | Silver |
| Insulation Diameter | 4.06 mm |
| Test Current | 35 A |
| Plating Thickness | 2.54 µm |
| Contact Gender | Female |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Contact Finish - Mating | |
| Termination Style | Crimp |
Stock: 5
Distributors
pcbx
pcbxUnit Price$13.13434
Ext.Price$13.13434
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $13.13434 | $13.13434 |
| 10 | $12.72586 | $127.25860 |
| 25 | $12.22970 | $305.74250 |
| 50 | $11.75289 | $587.64450 |
| 100 | $11.29468 | $1129.46800 |
